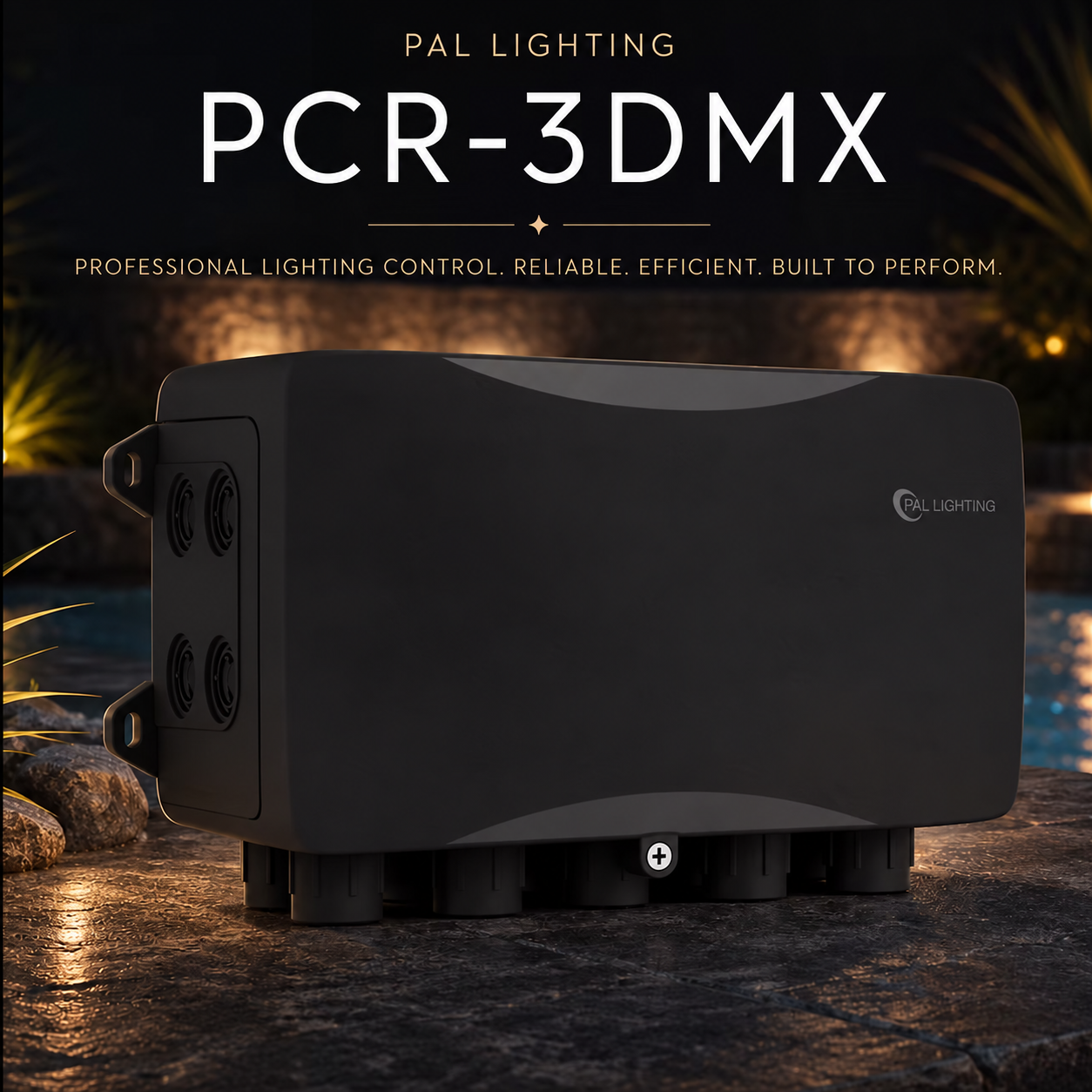

PCR-3DMX

Quantity Note:

Choose your options and quantity, then select ADD TO MY PROJECT. When you're ready, go to MY PROJECTS to review your selections and send your quote request.

Multi Color DMX Transformer 24VDC (No Remote Included)

Features

• 8 Zones

• Easy to Install

• UL Listed Class 2 Power Supply / Swimming Pool and Spa Transformer (WDGV)

• Remote Control Operation from PCZ-2 hand-held remote

• IP65 Wet Location Construction

• Constant 24V DC Output Voltage over the Supply

DIMENSIONS:

Width: 11 9/16" (293mm)

Depth (Top View): 4 11/16" (119mm)

Height (Side View): 6 7/8" (175mm)

Installation Notes:

• Includes 6 conduit holes.

• Remove cap to utilize conduit hole; leave unused conduits capped.

• Centre front hole is intended for the power cable.

• 13/16" (21.0mm) knockout to connect power supply (4 available on right side of enclosure, 3 available on left - 1 is used for air valve).

Use a drill to open knockouts.

 Installation Specs

• Mounting: Use the 2 x mounting legs to fasten the enclosure to the wall with appropriate fixtures for your mounting substrate.

• Knock-outs: Do not use side knock-outs.

• Input Power: Connect behind the front board using the JST Clip provided; connect brown and blue open wires using twist-on wire connectors.

• Conduit: Use 1/2" PVC conduit for wiring.

• Terminals: Features Zone 1-8 lighting terminals.

• Indicators: Includes DMX Connection LED indicator.

Configuration: Includes DIP Switches 9-1 for setting/configuration.

Official part numbers: 64-PCR-3DMX-120, 64-PCR-3DMX-500-8Z,

64-PCR-3DMX-500
